Product Description

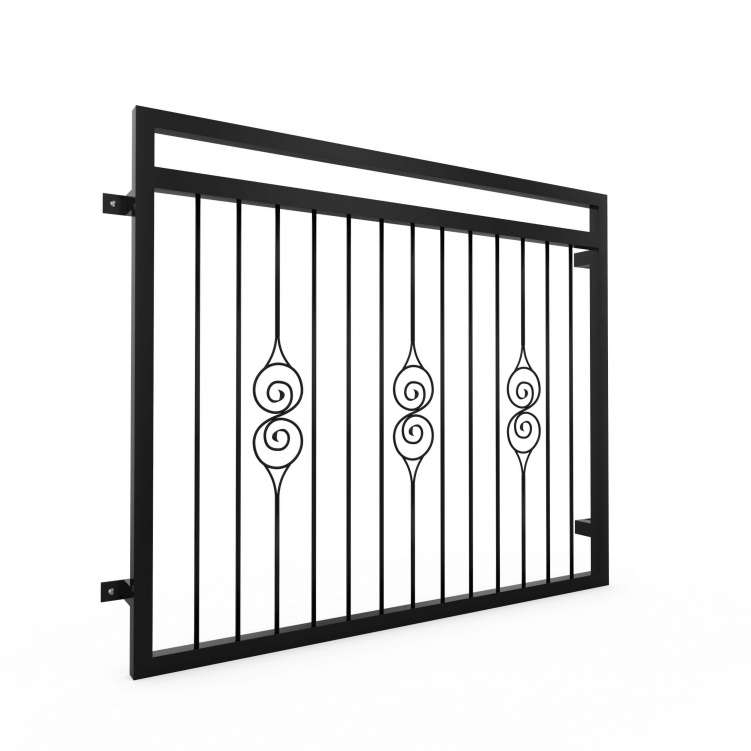

Suited to a wide range of property styles the Cartmel balcony is easy to fit and is also available in custom sizes if required.
The balcony is made in our workshop from high grade steel, and finished in a range of architectural grade powder coated colours.
The frame of the balcony is 30x30mm Box section with 12mm x 12mm sqaure profile infill bars. With elegant scrollwork every fourth bar working
from the centre.
The gap between the bars is less than 100mm which is compliant with UK building regulations.
The balcony projects 100mm From the wall, and has a clearance of 60mm between the back of the balcony and the face of the mounting feet.
The mounting holes in the feet are laser cut at 12mm. These are designed to suit M10 fixings.
The Overall height of the balcony is 1100mm (1.2 Mtr) which meets the current UK building regulations.
| Balcony Size | Hole Centres |
| | |
| 1100mm | 1150mm From centre of fixing holes horizontally |
| 1200mm | 1250mm from centre of fixing holes horizontally |
| 1300mm | 1350mm from centre of fixing holes horizontally |
| 1400mm | 1450mm from centre of fixing holes horizontally |
| 1500mm | 1550mm from centre of fixing holes horizontally |
| 1600mm | 1650mm from centre of fixing holes horizontally |
| 1700mm | 1750mm from centre of fixing holes horizontally |
| 1800mm | 1850mm from centre of fixing holes horizontally |
| 1900mm | 1950mm from centre of fixing holes horizontally |
| 2000mm | 2050mm from centre of fixing holes horizontally |
| 2100mm | 2150mm from centre of fixing holes horizontally |
| 2200mm | 250mm from centre of fixing holes horizontally |
| 2300mm | 2350mm from centre of fixing holes horizontally |
| 2400mm | 2450mm from centre of fixing holes horizontally |
| 2500mm | 2550mm from centre of fixing holes horizontally |
