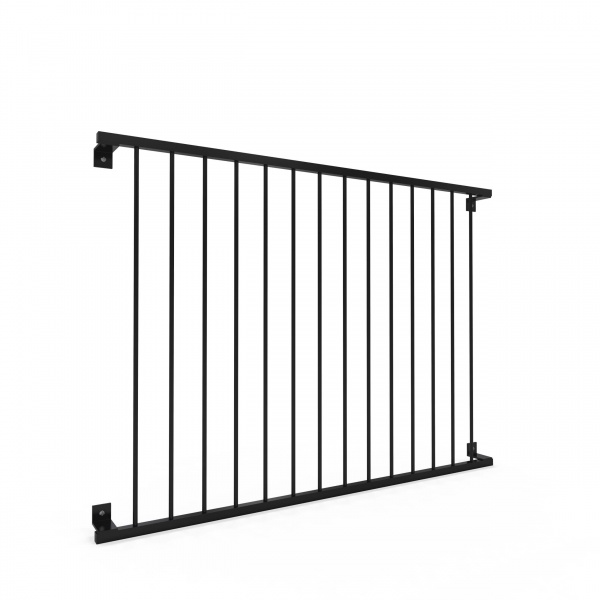

The Airedale Juliet balcony is perfect for our customers looking for a cost effective balcony solution.
A versatile design that is ideally suited for customers looking for a balcony that offers a simple clean look that suits a wide variety of propery styles.
The Airedale balcony is easy to fit and is also available in custom sizes, so if the size you require is not listed please call or email us and we will be happy to quote.
The top and bottom rails are made from 30mm x 30mm box section. The ends of the box section are capped off with black plastic inserts.
The infill bars are 12mm round section. The gap between these bars is less than 100mm which is compliant with UK building regulations.
The balcony projects 100mm from the wall, and have a clearance of 70mm Between the back of the balcony and the face of the mounting feet.
The mounting feet are laser cut and have a 12mm mounting hole. These are designed to suit M8 / M10 fixings.
| *** PLEASE NOTE! *** the 2600mm & 2700mm versions of this balcony are supplied with a low mid mount at the bottom of the balcony! |
The Overall height of the balcony is 1100mm (1.1 Mtr) which meets the current UK building regulations.
| Balcony Size | Hole Centres |
| | |
| 1200mm | 1150mm from centre of fixing holes horizontally |
| 1300mm | 1250mm from centre of fixing holes horizontally |
| 1400mm | 1350mm from centre of fixing holes horizontally |
| 1500mm | 1450mm from centre of fixing holes horizontally |
| 1600mm | 1550mm from centre of fixing holes horizontally |
| 1700mm | 1650mm from centre of fixing holes horizontally |
| 1800mm | 1750mm from centre of fixing holes horizontally |
| 1900mm | 1850mm from centre of fixing holes horizontally |
| 2000mm | 1950mm from centre of fixing holes horizontally |
| 2100mm | 2050mm from centre of fixing holes horizontally |
| 2200mm | 2150mm from centre of fixing holes horizontally |
| 2300mm | 2250mm from centre of fixing holes horizontally |
| 2400mm | 2350mm from centre of fixing holes horizontally |
| 2500mm | 2450mm from centre of fixing holes horizontally |
| 2600mm | 2550mm from centre of fixing holes horizontally (This size of balcony is supplied with a lower mid mount at the bottom of the balcony) |
| 2700mm | 2650mm from the centre of the fixing holes horizontally (This size of balcony is uspplied with a lower mid mount at the bottom of the balcony) |
