Product Description

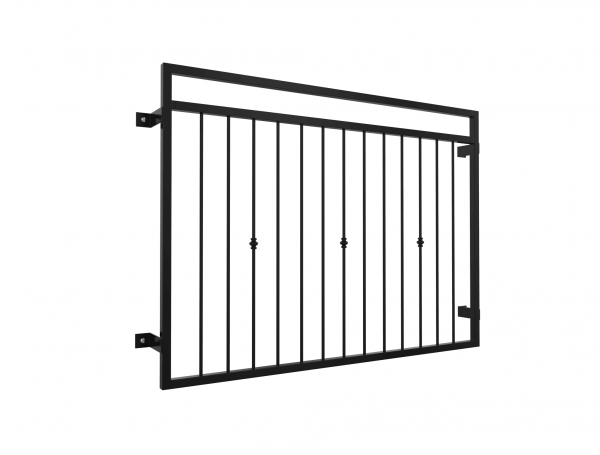

Introducing the Sutton Juliet Balcony – a perfect choice for enthusiasts of contemporary aesthetics infused with subtle design.
Crafted to complement a diverse array of property styles, the Sutton is meticulously designed to align with UK building regulations.
Constructed with precision, the framework boasts a robust 30mm x 30mm box section, while the infill bars are 12mm round solid bar composition. The central rail, echoing the sturdy box section, maintains a 30mm x 30mm dimension with a strategically spaced 100mm spacing between the top rail.
Thoughtfully engineered, the mounting brackets feature 12mm drilled holes, catering to both M8 and M10 fixings. The balcony is equipped with a total of 4 mounting holes, ensuring secure installation.
The Sutton Juliet Balcony is offered in a variety of powder-coated color finishes, with an additional option for galvanizing before powder coating – a protective measure enhancing the longevity of the balcony.
There is a 70mm spacing between the back of the balcony and the face of the mounting feet.
The Overall height of the balcony is 1100mm (1.1 Mtr) which meets the current UK building regulations
Balcony Size | Hole Centres |
| |
1200mm | 1250mm from centre of fixing holes horizontally |
1300mm | 1350mm from centre of fixing holes horizontally |
1400mm | 1450mm from centre of fixing holes horizontally |
1500mm | 1550mm from centre of fixing holes horizontally |
1600mm | 1650mm from centre of fixing holes horizontally |
1700mm | 1750mm from centre of fixing holes horizontally |
1800mm | 1850mm from centre of fixing holes horizontally |
1900mm | 1950mm from centre of fixing holes horizontally |
2000mm | 2050mm from centre of fixing holes horizontally |
2100mm | 2150mm from centre of fixing holes horizontally |
2200mm | 2250mm from centre of fixing holes horizontally |
2300mm | 2350mm from centre of fixing holes horizontally |
2400mm | 2450mm from centre of fixing holes horizontally |
2500mm | 2550mm from centre of fixing holes horizontally |
2600mm | 2650mm from centre of fixing holes horizontally |
