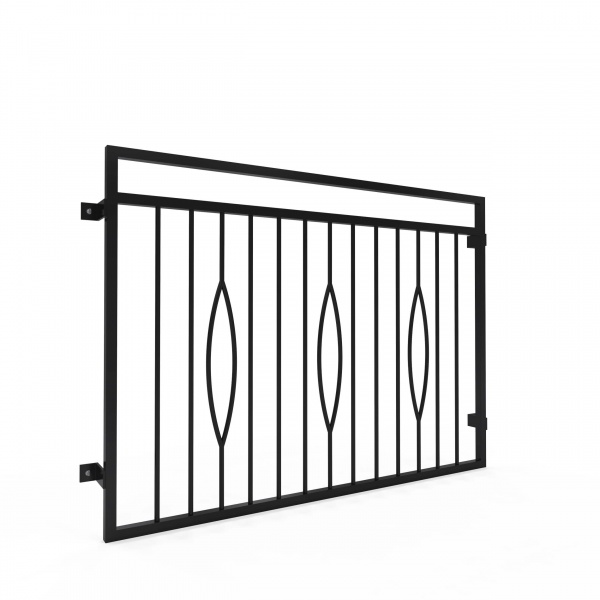

Our Deepdale Juliet balcony is our very latest contemporary design additions into our range.
This balcony is ideally suited for customers looking for a modern looking balcony at a superb price point.
Easy to fit and also available in custom sizes, so if the size you require is not listed please call us and we will be happy to quote.
The frame is produced from 30x30mm Box Section. The infill bars are 12mm x 12mm solid square section.
The gap between the bars is less than 100mm which is compliant with UK building regulations.
The balcony projects 100mm From the wall, and has a clearance of 70mm Between the back of the balcony and the face of the mounting feet.
The mounting feet are laser cut and have a 12mm mounting hole. These are designed to suit M8 / M10 fixings.
The Overall height of the balcony is 1100mm (1.1 Mtr) which meets the current UK building regulations.
| Balcony Size | Hole Centres |
| | |
| 1100mm | 1050mm from centre of fixings holes horizontally |
| 1100mm | 1150mm from centre of fixings holes horizontally |
| 1200mm | 1250mm from centre of fixing holes horizontally |
| 1300mm | 1350mm from centre of fixing holes horizontally |
| 1400mm | 1450mm from centre of fixing holes horizontally |
| 1500mm | 1550mm from centre of fixing holes horizontally |
| 1600mm | 1650mm from centre of fixing holes horizontally |
| 1700mm | 1750mm from centre of fixing holes horizontally |
| 1800mm | 1850mm from centre of fixing holes horizontally |
| 1900mm | 1950mm from centre of fixing holes horizontally |
| 2000mm | 2050mm from centre of fixing holes horizontally |
| 2100mm | 2150mm from centre of fixing holes horizontally |
| 2200mm | 250mm from centre of fixing holes horizontally |
| 2300mm | 2350mm from centre of fixing holes horizontally |
| 2400mm | 2450mm from centre of fixing holes horizontally |
| 2500mm | 2550mm from centre of fixing holes horizontally |
